358 Fence: High Security Anti-Climb Welded Mesh with 76.2×12.7 mm Aperture
358 fence, also known as anti-climb welded mesh fence or prison mesh fence, is made of closely spaced horizontal and vertical wires forming a high-security barrier. It is widely used for prisons, military facilities, airports, and other areas requiring perimeter protection. 358 fence features 76.2×12.7 mm mesh openings and 4–5 mm welded wires for maximum security. Panels are 2.515–3.0 m wide and 1.8–3.0 m high, supported by galvanized or powder-coated posts. Anti-climb and anti-cut design makes it suitable for prisons, airports, and military sites.
Specifications
1. Mesh Opening and Wire Diameter
- Mesh Aperture: 76.2 mm × 12.7 mm (3″ × 0.5″)
- Wire Diameter (Horizontal & Vertical): 4.0 mm to 5.0 mm
- Wire Material: Low-carbon steel or stainless steel
- Weld Strength: Firm welded intersections for anti-cutting resistance
2. Panel Size Options
- Standard Panel Height: 1.8 m, 2.0 m, 2.4 m, 3.0 m
- Panel Width: 2.515 m to 3.0 m
- Custom Sizes: Available upon project requirements
- Weight per Panel: Varies by wire diameter and coating
3. Post Types and Dimensions
- Square Post Sizes: 60×60 mm, 80×80 mm
- Rectangular Post Sizes: 60×80 mm
- Round Post Sizes: Ø60 mm, Ø76 mm
- Wall Thickness: 2.5 mm to 4.0 mm
- Post Height: Matches or exceeds panel height by 0.3–0.6 m for embedment or flange fixing
4. Surface Finish and Coatings
- Galvanized Finish: Hot-dip galvanization, zinc coating ≥ 600 g/m²
- Powder Coating: Polyester powder coating 60–100 µm
- PVC Coating: Optional for additional corrosion protection
- Color Options: RAL 6005 (green), RAL 7016 (anthracite), black, or custom colors
5. Security Features
- Anti-Climb: Narrow 76.2×12.7 mm mesh prevents hand and foot holds
- Anti-Cut: 4–5 mm welded wires resist bolt cutters
- Integration: Optional barbed wire, razor wire, or Y-arm extensions
- Applications: Prisons, power plants, airports, warehouses, military zones
6. Accessories and Installation
- Clamps and Fasteners: Steel security clips, bolts, and anti-tamper nuts
- Mounting Options: Embedded concrete footing or flange base plates
- Bracing: Optional flat bar or round bar reinforcements for taller fences
- Installation: Panels mounted on posts with continuous alignment for maximum rigidity

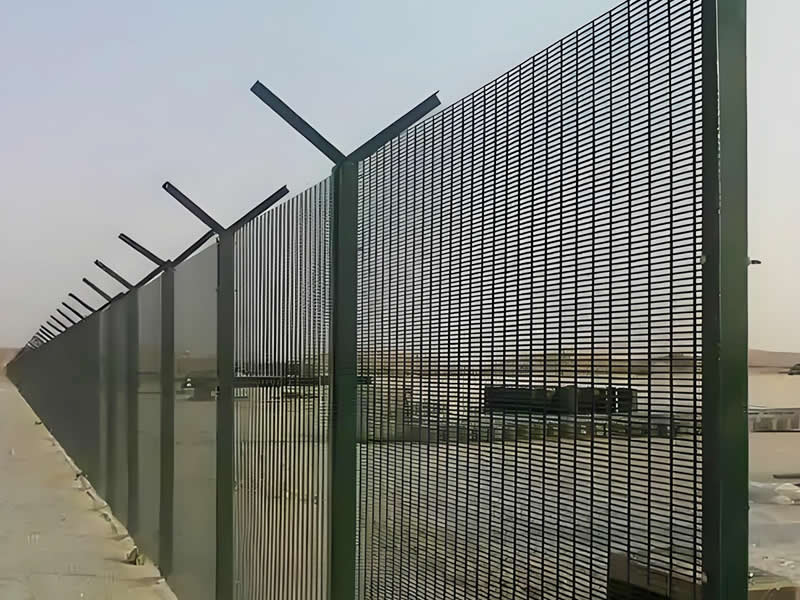

358 anti-climb fence for airport perimeter security
358 welded wire fence with anti-climb performance

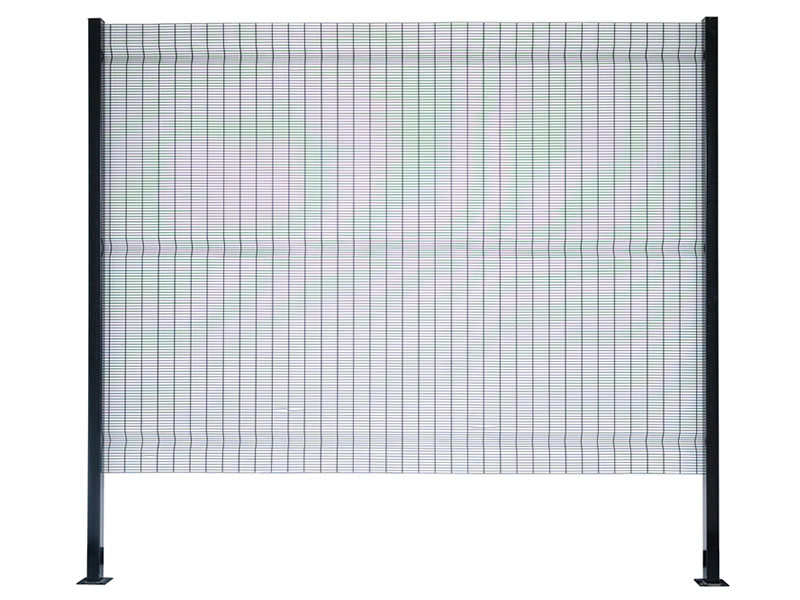

Powder-coated black 358 fence panel
358 welded wire mesh fence system with Y-arm

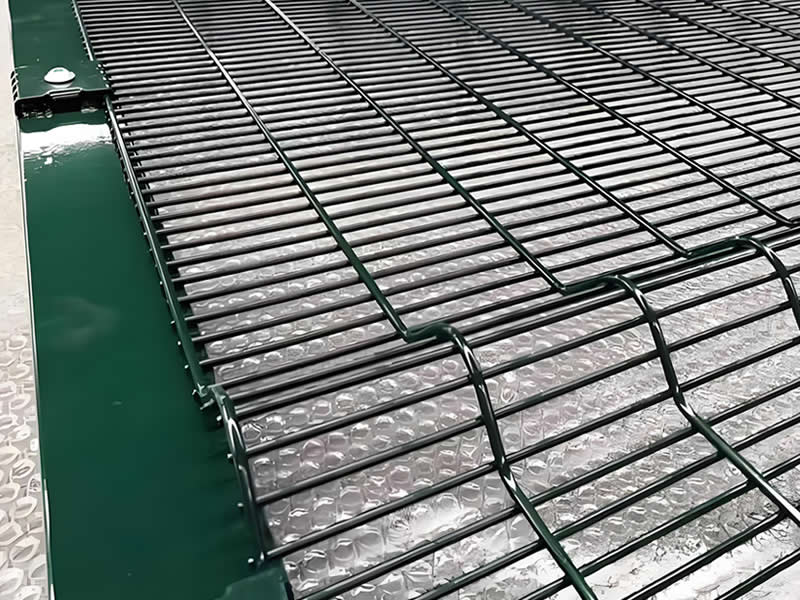

358 welded wire fence panel with powder coating
