Palisade Fence with D or W Section Pales for Industrial and High-Security Applications
Palisade fence is a welded steel security barrier made from hot-dip galvanized D-section or W-section pales. Available in heights from 1.8 m to 3.0 m with pale thicknesses 2.5–4.0 mm, it includes anti-climb spacing of 68–75 mm. Panels are supported by RSJ or square posts with galvanized or powder-coated finishes. Palisade fencing is widely used for industrial sites, utilities, transport facilities, and perimeter security projects. It offers durable protection, easy installation, and compliance with BS1722: Part 12 standards for high-security applications.
Specifications
1. Material
- Hot-dip galvanized steel meeting BS1722: Part 12
- Optional powder coating or PVC coating for added corrosion protection
2. Fence Heights
- Standard heights: 1.8 m, 2.0 m, 2.4 m, 3.0 m
- Custom heights available based on project requirements
3. Pale Specifications
- Pale type: D-section or W-section
- Pale width: 65 mm or 70 mm (D-section), 62 mm (W-section)
- Pale thickness: 2.5 mm – 4.0 mm

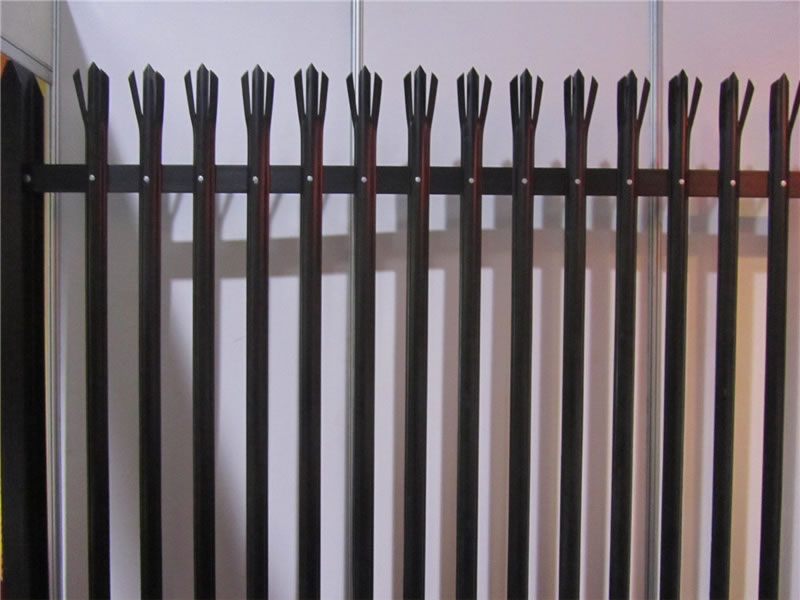

- Pale tops: Triple-pointed, single-pointed, rounded
4. Spacing and Panels
- Standard pale spacing: 68 mm – 75 mm center-to-center
- Panel width: 2.75 m or 3.0 m
- Number of pales per panel: 17–18
5. Posts
- Square or RSJ posts: 100×55 mm RSJ or 100×100 mm square
- Post length depends on fence height (embedded or flange-mounted)
6. Rails
- Horizontal rails: Angle iron or RHS
- Typical size: 50×50×6 mm angle or 50×50×3 mm RHS
- Two or three rails depending on fence height
7. Coatings
- Galvanized to ISO 1461 or ASTM A123 standards
- Optional polyester powder coating in RAL colors
- Fasteners and Fixings
- Anti-vandal bolts, shear nuts, and security fasteners included
- Fishplates for joining panels to posts
Applications
- Industrial Facilities: Factories, warehouses, and logistics centers perimeter security.
- Transportation: Airports, railways, and highways for boundary protection.
- Utilities & Energy: Power stations, water treatment plants, substations.
- Public Infrastructure: Schools, government buildings, and municipal facilities.
- High-Security Zones: Military bases, correctional facilities, and restricted areas.

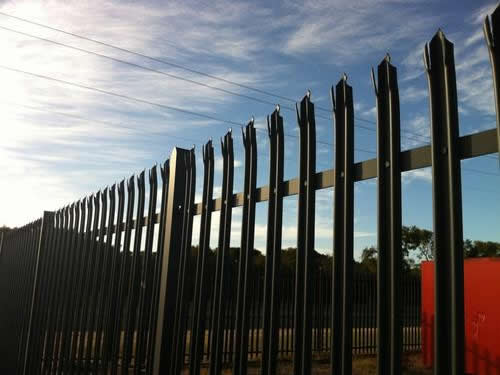

black color powder coated palisade fence

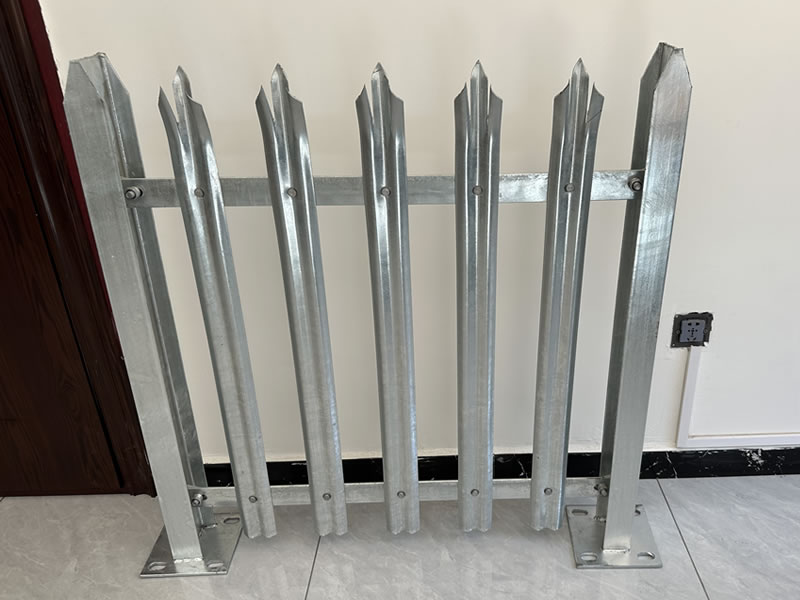

galvanized palisade fence

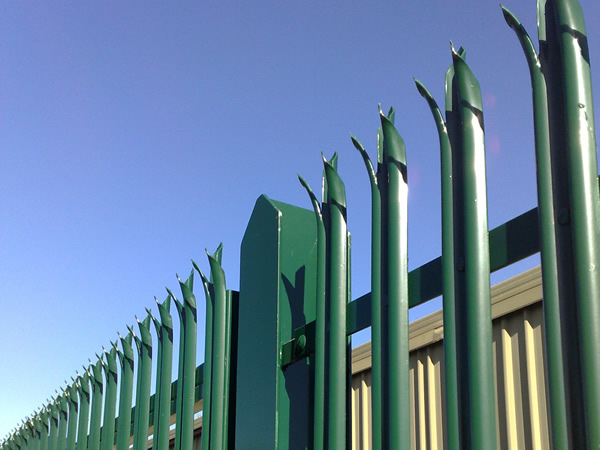

green color powder coated palisade fence

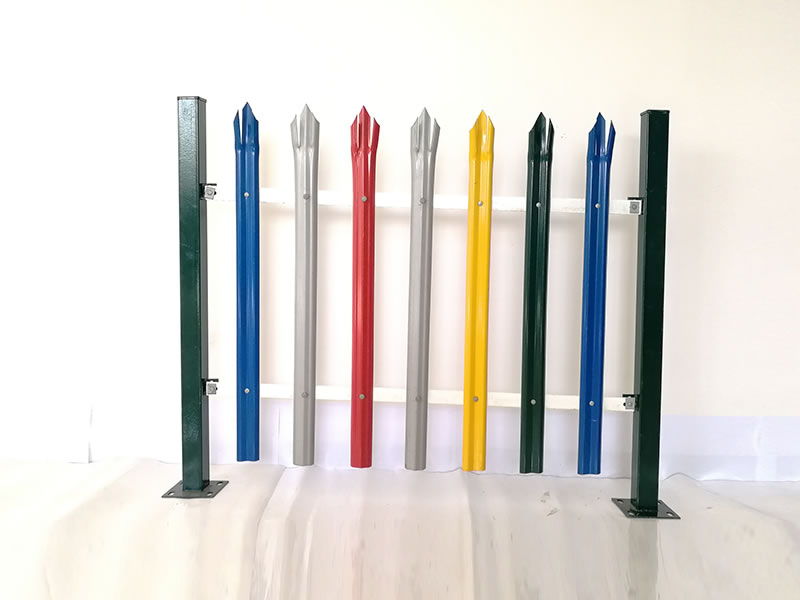

palisade fence with D and W

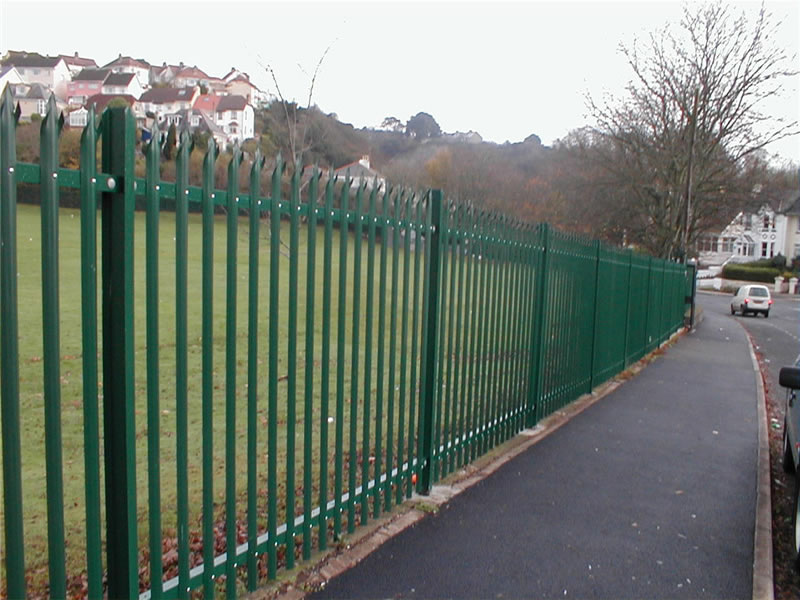

palisade fence for commercial properties
